NGINX Ingress Controller in Action: Hands-On Basics(En)

Albert Weng
10 min readJan 10, 2024

--

At the start of 2024, things got unexpectedly hectic at work, and I’ve been swamped for a while. Sorry for the lack of updates!

This article won’t delve into what an Ingress Controller is. Instead, I’ll share some straightforward operations with an nginx Ingress Controller in a Kubernetes cluster. This article might be a bit lengthy, but I’ve tested and applied it successfully.

This article will cover the following sections:

  1. Preparing in advance
  2. Process overview
  3. Hands-On operations
  4. Mapping domain names to ingress LB IP
  5. Deploying a demo app for verification

1. Preparing in advance

  1. Kubernetes cluster
  2. Admin access to the Kubernetes cluster
  3. A valid domain for Ingress controller Load Balancer IP (optional)
  4. For On-premises, set up a service similar to MetalLB
  5. There are two types of Nginx Ingress controllers:
  • Nginx Ingress Controller released by the Kubernetes community
  • Nginx Ingress Controller released by Nginx”

2. Process Overview

  1. Create the ‘ingress-nginx’ namespace.
  2. Set up the service account, roles, and cluster roles required for the Nginx admission controller.
  3. Verify the webhook configuration.
  4. Establish the job of creating/updating Webhook CA bundles.
  5. Set up the service account, roles, and cluster roles required for the Nginx controller deployment.
  6. Create the Nginx controller ConfigMap.
  7. Create services for Nginx controller and admission controller.
  8. Deploy the Ingress controller.”

3. Hands-On Operations

#--------------------------------------------------
# S3-1. create namespace
#--------------------------------------------------
[root]# kubectl create ns ingress-nginx
#--------------------------------------------------
# S3-2. Create Nginx admission controller role & SA
# Create Role/ClusterRole and bind to SA
#--------------------------------------------------
[root]# vim admission-service-account.yaml
---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  annotations:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission
  namespace: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - secrets
  verbs:
  - get
  - create
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: nginx-nginx
  name: ingress-nginx-admission
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
  name: ingress-nginx-admission
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission
rules:
- apiGroups:
  - admissionregistration.k8s.io
  resources:
  - validatingwebhookconfigurations
  verbs:
  - get
  - update

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
  name: ingress-nginx-admission
  namespace: ingress-nginx
[root]# kubectl apply -f admission-service-account.yaml
serviceaccount/ingress-nginx-admission created
role.rbac.authorization.k8s.io/ingress-nginx-admission created
rolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrole.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created

Kubernetes Admission Controller ensures validation or updates before creating Kubernetes components. In this context, it validates Ingress objects within the Nginx controller, enhancing configuration accuracy and rule adherence.

#--------------------------------------------------
# S3-3. Confirm webhook setting
#--------------------------------------------------
[root]# vim validating-webhook.yaml
---
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission
webhooks:
- admissionReviewVersions:
  - v1
  clientConfig:
    service:
      name: ingress-nginx-controller-admission
      namespace: ingress-nginx
      path: /networking/v1/ingresses
    failurePolicy: Fail
    matchPolicy: Equivalent
    name: validate.nginx.ingress.kubernetes.io
    rules:
    - apiGroups:
      - networking.k8s.io
      apiVersions:
      - v1
      operations:
      - CREATE
      - UPDATE
      resources:
      - ingresses
    sideEffects: None

[root]# kubectl apply -f validating-webhook.yaml
validatingwebhookconfiguration.admissionregistration.k8s.io/ingress-nginx-admission created
#--------------------------------------------------
# S3-4. Create/Update Webhook CA bundles
# ValidatingWebhookConfiguration only for https，it need a CA bundle
#--------------------------------------------------
[root]# vim jobs.yaml
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission-create
  namespace: ingress-nginx
spec:
  template:
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
      name: ingress-nginx-admission-create
    spec:
      containers:
      - args:
        - create
        - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
        - --namespace=$(POD_NAMESPACE)
        - --secret-name=ingress-nginx-admission
        env:
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        image: k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1
        imagePullPolicy: IfNotPresent
        name: create
        securityContext:
          allowPrivilegeEscalation: false
      nodeSelector:
        kubernetes.io/os: linux
      restartPolicy: OnFailure
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000
      serviceAccountName: ingress-nginx-admission
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission-patch
  namespace: ingress-nginx
spec:
  template:
    metadata:
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
      name: ingress-nginx-admission-patch
    spec:
      containers:
      - args:
        - patch
        - --webhook-name=ingress-nginx-admission
        - --namespace=$(POD_NAMESPACE)
        - --patch-mutating=false
        - --secret-name=ingress-nginx-admission
        - --patch-failure-policy=Fail
        env:
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        image: k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1
        imagePullPolicy: IfNotPresent
        name: patch
        securityContext:
          allowPrivilegeEscalation: false
      nodeSelector:
        kubernetes.io/os: linux
      restartPolicy: OnFailure
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000
      serviceAccountName: ingress-nginx-admission

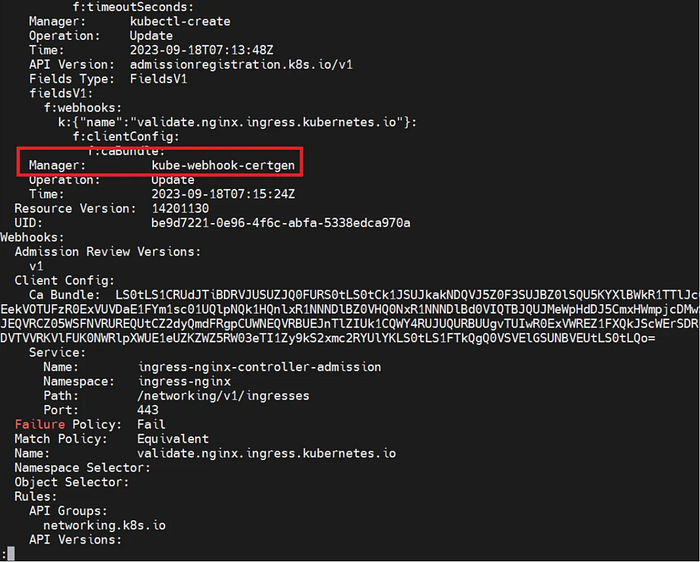

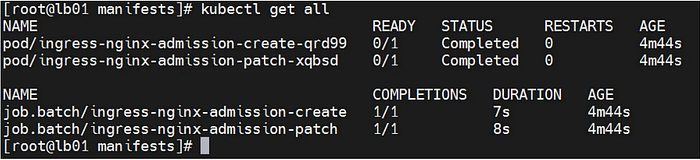

※ After execution, you can verify whether the 'ValidatingWebhookConfiguration' has been patched with the bundle
[root]# kubectl describe ValidatingWebhookConfiguration ingress-nginx-admission
#--------------------------------------------------
# S3-5. Create Nginx controller controller deployment service
# account/Roles/ClusterRoles
#--------------------------------------------------
[root]# vim ingress-service-account.yaml
---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx
  namespace: ingress-nginx

---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx
  namespace: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - namespaces
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - configmaps
  - pods
  - secrets
  - endpoints
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - services
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses/status
  verbs:
  - update
- apiGroups:
  - networking.k8s.io
  resources:
  - ingressclasses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resourceNames:
  - ingress-controller-leader
  resources:
  - configmaps
  verbs:
  - get
  - update
- apiGroups:
  - ""
  resources:
  - configmaps
  verbs:
  - create
- apiGroups:
  - ""
  resources:
  - events
  verbs:
  - create
  - patch

---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx
subjects:
- kind: ServiceAccount
  name: ingress-nginx
  namespace: ingress-nginx

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - configmaps
  - endpoints
  - nodes
  - pods
  - secrets
  - namespaces
  verbs:
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - nodes
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - services
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - events
  verbs:
  - create
  - patch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses/status
  verbs:
  - update
- apiGroups:
  - networking.k8s.io
  resources:
  - ingressclasses
  verbs:
  - get
  - list
  - watch

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx
subjects:
- kind: ServiceAccount
  name: ingress-nginx
  namespace: ingress-nginx

[root]# kubectl apply -f ingress-service-account.yaml
serviceaccount/ingress-nginx created
role.rbac.authorization.k8s.io/ingress-nginx created
rolebinding.rbac.authorization.k8s.io/ingress-nginx created
clusterrole.rbac.authorization.k8s.io/ingress-nginx created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx created
#--------------------------------------------------
# S3-6. Create Nginx controller configmap
# (Using a ConfigMap allows customization of Nginx settings,
# such as custom headers…)
#--------------------------------------------------
[root]# vim configmap.yaml
---
apiVersion: v1
data:
  allow-snippet-annotations: "true"
kind: ConfigMap
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-controller
  namespace: ingress-nginx

[root]# kubectl apply -f configmap.yaml
[root]# kubectl get all
#--------------------------------------------------
# S3-7. Create nginx controller & admission controller services
#--------------------------------------------------
[root]# vim services.yaml
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  externalTrafficPolicy: Local
  ipFamilies:
  - IPv4
  ipFamilyPolicy: SingleStack
  ports:
  - appProtocol: http
    name: http
    port: 80
    protocol: TCP
    targetPort: http
  - appProtocol: https
    name: https
    port: 443
    protocol: TCP
    targetPort: https
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  type: LoadBalancer
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-controller-admission
  namespace: ingress-nginx
spec:
  ports:
  - appProtocol: https
    name: https-webhook
    port: 443
    targetPort: webhook
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  type: ClusterIP

[root]# kubectl apply -f services.yaml
service/ingress-nginx-controller created
service/ingress-nginx-controller-admission created

※ The created 'ingress-nginx-controller' will deploy a Load Balancer
on the corresponding cloud platform. You can obtain the Load Balancer's
IP/DNS using the following methods:
[root]# kubectl --namespace ingress-nginx get services -o wide -w ingress-nginx-controller
--> 10.107.88.91
#--------------------------------------------------
# S3-8. Deploy ingress controller
#--------------------------------------------------
[root]# vim deployment.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  minReadySeconds: 0
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app.kubernetes.io/component: controller
      app.kubernetes.io/instance: ingress-nginx
      app.kubernetes.io/name: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
    spec:
      containers:
      - args:
        - /nginx-ingress-controller
        - --publish-service=$(POD_NAMESPACE)/ingress-nginx-controller
        - --election-id=ingress-controller-leader
        - --controller-class=k8s.io/ingress-nginx
        - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
        - --validating-webhook=:8443
        - --validating-webhook-certificate=/usr/local/certificates/cert
        - --validating-webhook-key=/usr/local/certificates/key
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: LD_PRELOAD
          value: /usr/local/lib/libmimalloc.so
        image: k8s.gcr.io/ingress-nginx/controller:v1.1.1
        imagePullPolicy: IfNotPresent
        lifecycle:
          preStop:
            exec:
              command:
              - /wait-shutdown
        livenessProbe:
          failureThreshold: 5
          httpGet:
            path: /healthz
            port: 10254
            scheme: HTTP
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 1
        name: controller
        ports:
        - containerPort: 80
          name: http
          protocol: TCP
        - containerPort: 443
          name: https
          protocol: TCP
        - containerPort: 8443
          name: webhook
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /healthz
            port: 10254
            scheme: HTTP
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 1
        resources:
          requests:
            cpu: 100m
            memory: 90Mi
        securityContext:
          allowPrivilegeEscalation: true
          capabilities:
            add:
            - NET_BIND_SERVICE
            drop:
            - ALL
          runAsUser: 101
        volumeMounts:
        - mountPath: /usr/local/certificates/
          name: webhook-cert
          readOnly: true
      dnsPolicy: ClusterFirst
      nodeSelector:
        kubernetes.io/os: linux
      serviceAccountName: ingress-nginx
      terminationGracePeriodSeconds: 300
      volumes:
      - name: webhook-cert
        secret:
          secretName: ingress-nginx-admission

[root]# kubectl apply -f deployment.yaml

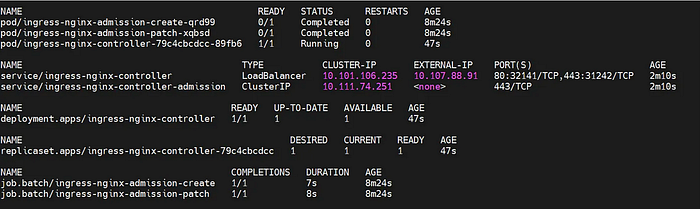

[root]# kubectl get pod -n ingress-nginx
#--------------------------------------------------
# S3-09. Deploy ingress class
#--------------------------------------------------
[root]# vim ingressclass.yaml
---
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: nginx
spec:
  controller: k8s.io/ingress-nginx
---
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission
webhooks:
- admissionReviewVersions:
  - v1
  clientConfig:
    service:
      name: ingress-nginx-controller-admission
      namespace: ingress-nginx
      path: /networking/v1/ingresses
  failurePolicy: Fail
  matchPolicy: Equivalent
  name: validate.nginx.ingress.kubernetes.io
  rules:
  - apiGroups:
    - networking.k8s.io
    apiVersions:
    - v1
    operations:
    - CREATE
    - UPDATE
    resources:
    - ingresses
  sideEffects: None

[root]# kubectl create -f ingressclass.yaml
[root]# kubectl get ingressclass
NAME    CONTROLLER             PARAMETERS   AGE
nginx   k8s.io/ingress-nginx   <none>       4m21s

4. Mapping Domain Names to Ingress LB IP

The main purpose of Ingress is to receive external traffic and route it to services running on Kubernetes. Therefore, in practice, DNS should map to the Ingress controller’s LB IP (in this case, 10.107.88.91, and internal DNS should correspond to it).

This can be achieved through the corresponding DNS mapping.

There are two methods:

  1. Single DNS mapping: Directly map the entire domain to the Ingress controller’s LB IP. This approach enables routing traffic for a single domain to the Ingress controller with multiple paths.
www.example.com ---> Loadbalancer IP
[OR]
http://www.example.com/app1
http://www.example.com/app2
http://www.example.com/app1/api
http://www.example.com/app2/api

2. Wildcard DNS mapping: With this method, you can leverage the dynamic DNS endpoints feature through Ingress. When using wildcards in DNS, you need to include the necessary DNS for Ingress and the service endpoints that the Nginx Ingress Controller will handle.

*.example.com --> Loadbalancer IP
*.apps.example.com --> Loadbalancer IP

This method allows having multiple dynamic subdomains under a single Ingress controller, and each DNS can have its own path-based routing.

#URL one

http://demo1.example.com/api
http://demo1.example.com/api/v1
http://demo1.example.com/api/v2

#app specific urls

http://grafana.apps.example.com
http://prometheus.apps.example.com

#URL two

http://demo2.apps.example.com/api
http://demo2.apps.example.com/api/v1
http://demo2.apps.example.com/api/v2
#------------------------------------------------------
# S4-1. wildcard DNS Mapping
#------------------------------------------------------
[lb01]# vim /var/named/named.test.example.poc
--> Add
*.apps.test.example.poc.           IN A    10.107.88.91

[lb01]# systemctl restart named

5. Deploying a demo app for verification

#------------------------------------------------------
# S5-1. edit app yaml
#------------------------------------------------------
[root]# vim hello-app.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: hello-app
  namespace: dev
spec:
  selector:
    matchLabels:
      app: hello
  replicas: 3
  template:
    metadata:
      labels:
        app: hello
    spec:
      containers:
      - name: hello
        image: "gcr.io/google-samples/hello-app:2.0"

[root]# kubectl create -f hello-app.yaml

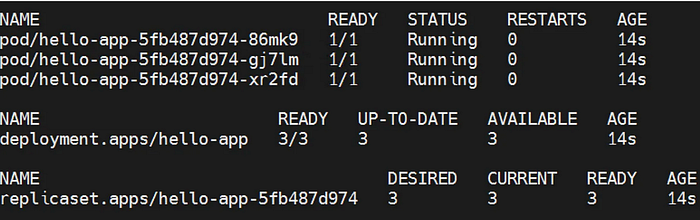

[root]# kubectl get all -n dev
#------------------------------------------------------
# S5-2. create svc
#------------------------------------------------------
[root]# vim hello-svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: hello-service
  namespace: dev
  labels:
    app: hello
spec:
  type: ClusterIP
  selector:
    app: hello
  ports:
  - port: 80
    targetPort: 8080
    protocol: TCP

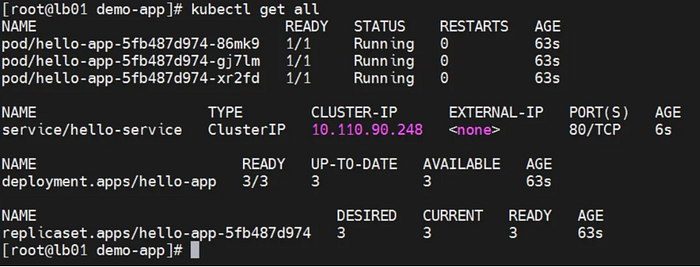

[root]# kubectl create -f hello-svc.yaml

※ Creating ingress for app usage

Objective: Establish an Ingress to enable external access to the App via DNS using FQDN (http://demo.test.example.poc).

Operation: The Ingress controller pod connects to the Ingress API to validate the routing rules.

#------------------------------------------------------
# S5-3. edit ingress.yaml
#------------------------------------------------------
[root]# vim ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: test-ingress
  namespace: dev
spec:
  ingressClassName: nginx
  rules:
  - host: "demo.apps.test.example.poc"
    http:
      paths:
        - pathType: Prefix
          path: "/"
          backend:
            service:
              name: hello-service
              port:
                number: 80
[root]# kubectl create -f ingress.yaml

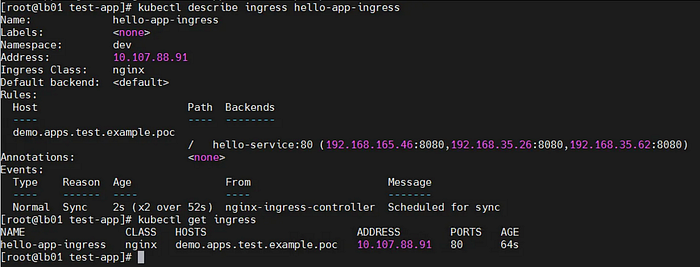

[root]# kubectl describe ingress -n dev

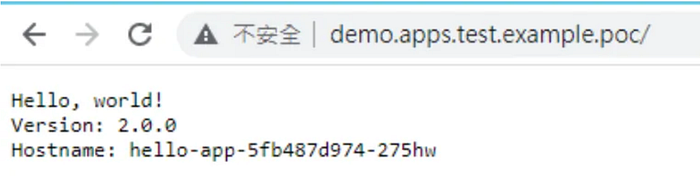

==> http://demo.apps.test.example.poc

※Conclusion:

Since the code is provided here for your convenience, the article is a bit lengthy. But it saves you from hopping to other websites, making it easier to read.

In the containerized world, understanding Ingress is vital. While this article doesn’t start from scratch, going through practical operations might give you a better feel for Ingress basics.

That wraps up today’s share. See you in the next one!

Kubernetes
Ingresscontroller
Kubernetes Networking
K8s
Containers

--

--

Albert Weng
Albert Weng

Written by Albert Weng

149 Followers
5 Following

You don't have to be great to start, but you have to start to be great

No responses yet

Help

Status

About

Careers

Press

Blog

Privacy

Terms

Text to speech

Teams
